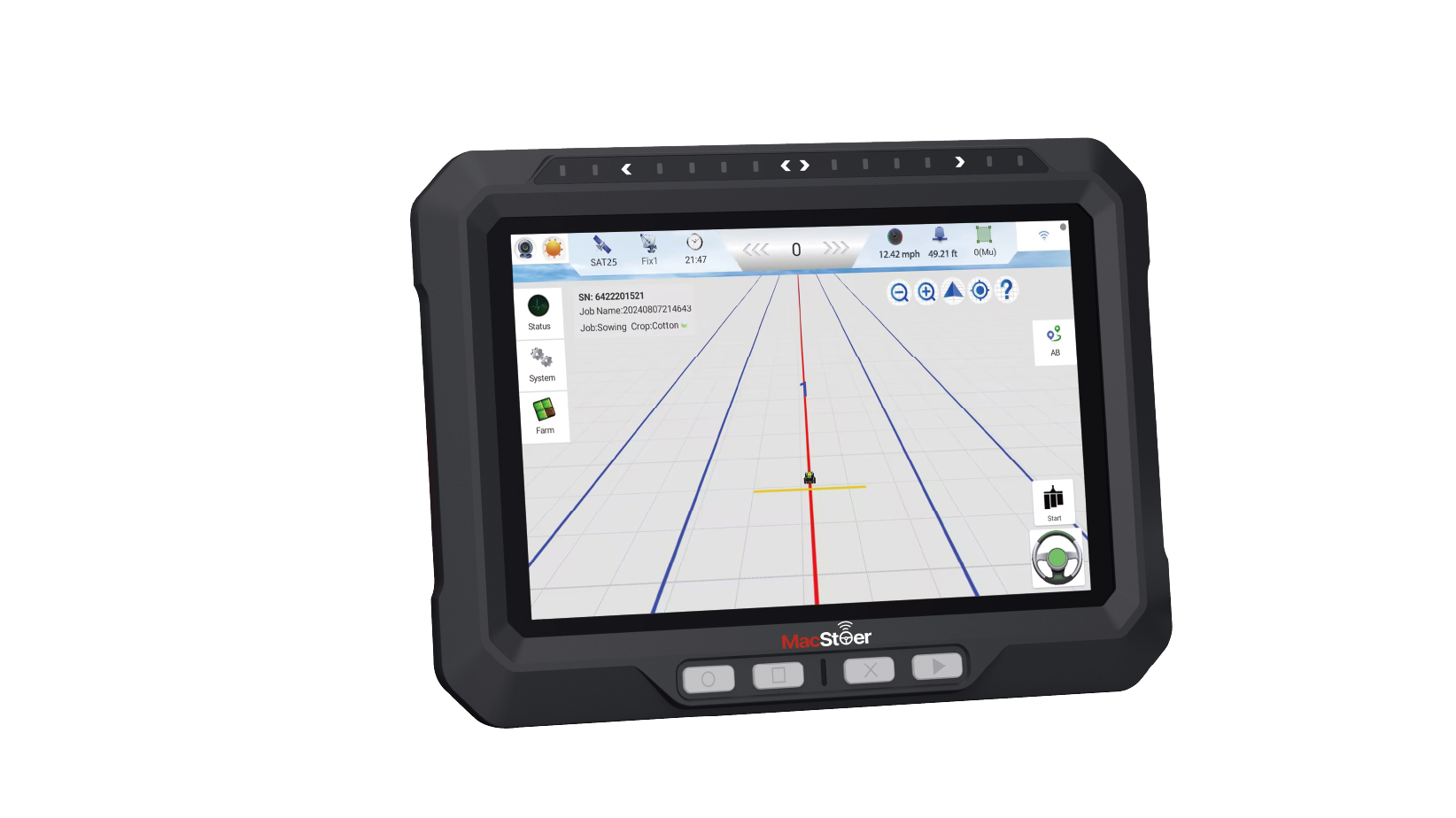

Tablet Display
|
|
|
RTK Positioning Accuracy (RMS) |
System |
|
Horizontal: 8 mm + 1 ppm Vertical: 15 mm + 1 ppm Initialization Time: <5 S (typical) Initialization Reliability: >99.9% First Fix Time: <30 s |
8-core, 2 GHz 2 G RAM 32 GB ROM Android 12.0 |
|
Electrical |
Communications |
|
Power Supply:9–36 V DC |
2.4 GHz WiFi, IEEE 802.11a/b/g/n/ac Supports Wi-Fi hotspot sharing BLE 4.2 4G/LTE Built-in microphone (optional) Built-in speaker CAN * 2 RS-232 * 2 RS-485 * 1 DI * 2, DO * 2 USB 2.0 * 1 12 VDC OUT * 1 |
|
Physical |
Environment |
|
Dimensions: 284.7 × 204 × 49.5 mm Weight: 3.74Ibs |
Ingress Protection Rating: IP67 |
|
Display |
|
|
Size: 10.1 inches Resolution: 1280 x 800 p Brightness: 750 nits Haptic Touch: Supports 10-point touch |
|
