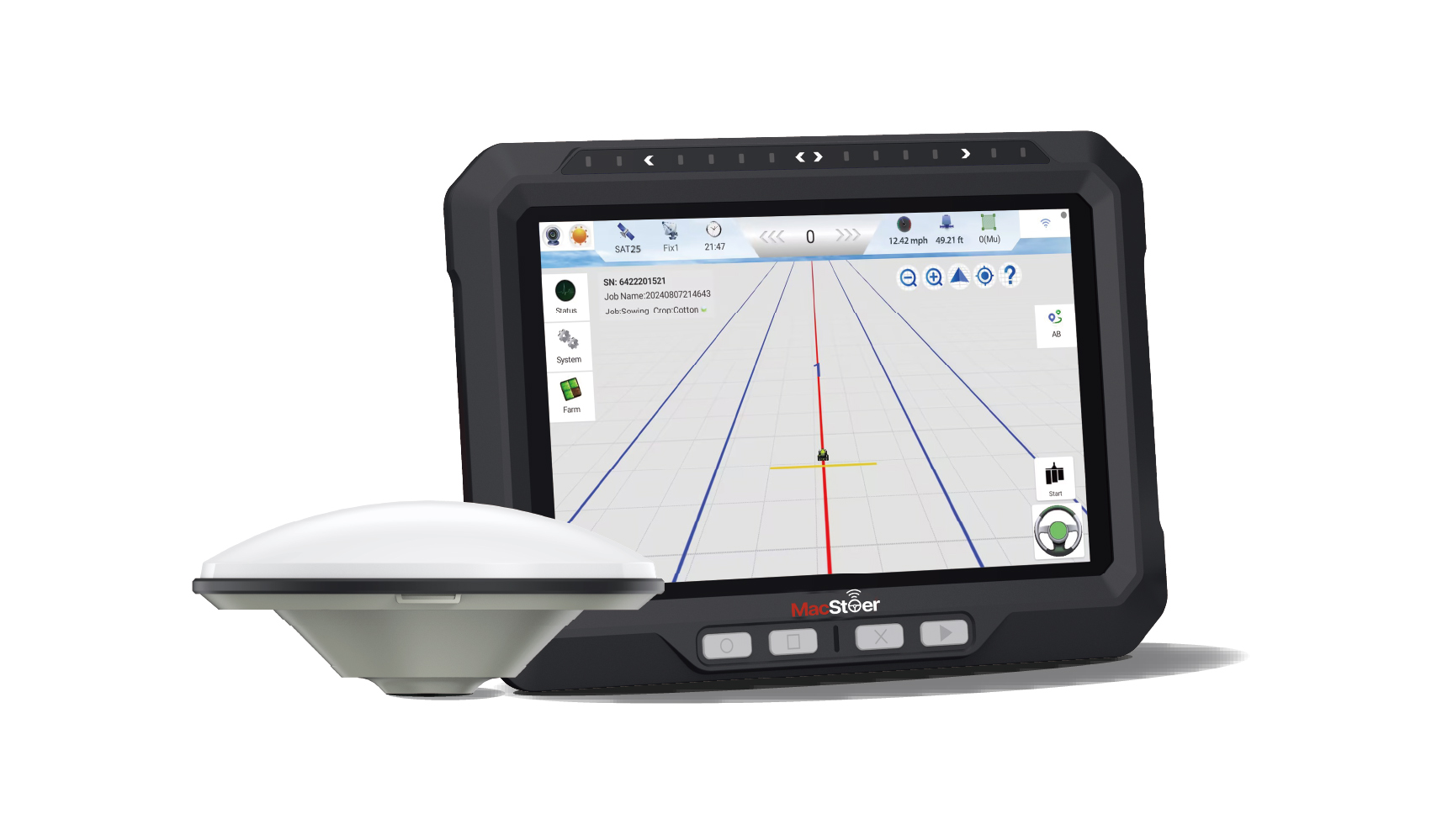

Entry kit N30
COMPARISION WITH OTHER BRANDS
MacSteer is unique: It provides 1 inch native RTK with no unlock fee. And uses the Galileo HAS to deliver 4- inches free accuracy without RTK , ideal for dairy and hay farms while other brands deliver 6-8 inches even 8-12 inches.
| Key Performance | Hardware Price | Service Fee | RTK Signal | |
| Brand T (A Package) |
•8–12 inches accuracy, free. •No RTK capability. •7" display. |
$2,600 | None | No RTK support |
| Brand T (B Package) |
•8–12 inches accuracy free. •Supports RTK (1-inch) with unlock fee • 7" display. |
$5,000 | •RTK unlock $2,000–$3,000 (one time). •RTK satellite ~$1,500/yr (optional). |
If using your own RTK base → NO yearly fee for RTK signal |
| MacSteer | •4 inches accuracy free (full convergence, 95% confidence level) . •Supports native RTK (1-inch), no unlock fee. •10" display. |
$4,500 | •No RTK unlock fee. •Satellite correction ~$900/yr (optional). |
If using your own RTK base →NO yearly fee for RTK signal |
SPECIFICATION OF ENTRY KIT N30
|
|
 |
|
|

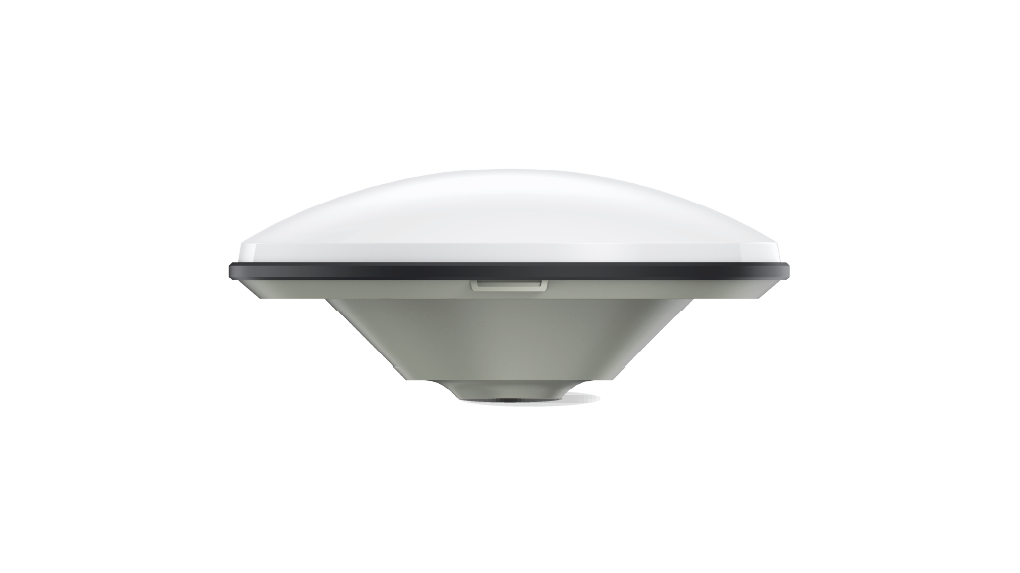

GNSS Antenna |
Tablet Display |
|
|
Antenna Size |
RTK Positioning Accuracy (RMS) |
System |
|
Φ 6.0 × 2.45 inches |
Horizontal: 0.32 inches + 1 ppm Vertical: 0.59 inches + 1 ppm Initialization Time: <5 S (typical) Initialization Reliability: >99.9% First Fix Time: <30 s |
8-core, 2 GHz 2 G RAM 32 GB ROM Android 12.0 |
|
Weight |
Electrical |
Communications |
|
≤0.88 Ibs |
Power Supply:9–36 V DC |
2.4 GHz WiFi, IEEE 802.11a/b/g/n/ac Supports Wi-Fi hotspot sharing BLE 4.2 4G/LTE Built-in microphone (optional) Built-in speaker CAN * 2 RS-232 * 2 RS-485 * 1 DI * 2, DO * 2 USB 2.0 * 1 12 VDC OUT * 1 |
|
Frequency |
Physical |
Environment |
|
GPS: L1/L2/L5 BDS: B1/B2/B3 GLONASS: L1/L2/L3 GALILEO: E1/E5a/E5b/E6 QZSS: L1/L2/L5/L6 IRNSS: L5 L-Band |
Dimensions: 11.21 × 8.03 × 1.95 inches Weight: 3.86 Ibs |
Ingress Protection Rating: IP67 |
| Environment |
Display |
|
| Ingress Protection Rating: IP67 |
Size: 10.1 inches Resolution: 1280 x 800 p Brightness: 750 nits Haptic Touch: Supports 10-point touch |
|
COMPARISION BETWEEN N50 & N30
| N50 | N30 | |
| Terrain compensation | Yes | No |
| Automated steering | Yes | No |
| Navigation accuracy (RTK) | 1 inch | 1 inch |
| Driving accuracy | 1 inch | 4-12 inches |
| Build-in IMU | Yes | No |
| Front wheel IMU | Yes | No |
| Auto steering drive unit | Yes | No |
| 4G network chipsets | Yes | No |
| Display size | 10‘’ | 10‘’ |
| Key performance | • 4 inches accuracy free (full convergence,95% confidence level). • Native RTK (1-inch), no unlock fee. |
•4 inches accuracy free (full convergence,95% confidence level). •Supports native RTK (1-inch), no unlock fee. |
| Service Fee | • No RTK unlock fee • No annual subscription fee for auto-steer • No ISOBUS UT unlock fee • Satellite RTK signal: ~$900/yr (optional) |
•No RTK unlock fee. •Satellite correction ~$900/yr (optional). |
| RTK Signal | If using your own RTK base →NO yearly fee for RTK signal | If using your own RTK base →NO yearly fee for RTK signal |
| Use on Farm | Wheat farm, Cotton farm, Corn farm, Soybeans farm etc. | Hay farm, Dairy farm, Sod farm etc. |
*Depends on the driver
