Standard kit N50
COMPARISION WITH OTHER BRANDS
MacSteer is unique: It provides 1 inch native RTK with no unlock fee. And uses the Galileo HAS to deliver 4- inches free accuracy without RTK , ideal for dairy and hay farms while other brands deliver 6-8 inches even 8-12 inches.
| Key Performance | Service Fee | RTK Signal | |
| Brand A | • 6–8 inches accuracy free. • Supports RTK (1-inch) with RTK unlock fee. • 10" display. |
• RTK Unlock fee: $3,000–$3,500 (one time) • Autosteer subscription fee: ~$1000/yr (required for auto-steer) • Autosteer + ISOBUS UT subscription fee ~$2,000/yr • Satellite RTK signal: ~$1,500/yr (optional) |
If using your own RTK base → NO yearly fee for RTK signal (But software license still required to use auto-steer. |
| Brand B | • 8–12 inches accuracy free. • Supports RTK (1-inch) with RTK unlock fee. • 10" display. |
• RTK Unlock fee: $2,000–$3,000 (one time) • No annual subscription fee for auto-steer • ISOBUS UT unlock: $1,000 (one time) • Satellite RTK signal: ~$1,500/yr (optional) |
If using your own RTK base → NO yearly fee for RTK signal |
| MacSteer | • 4 inches accuracy free (full convergence,95% confidence level) • Native RTK (1-inch), no unlock fee. • 10" display. |
• No RTK unlock fee • No annual subscription fee for auto-steer • No ISOBUS UT unlock fee • Satellite RTK signal: ~$900/yr (optional) |
If using your own RTK base →NO yearly fee for RTK signal |
SPECIFICATION OF STANDARD KIT N50
|
|
|
|
|

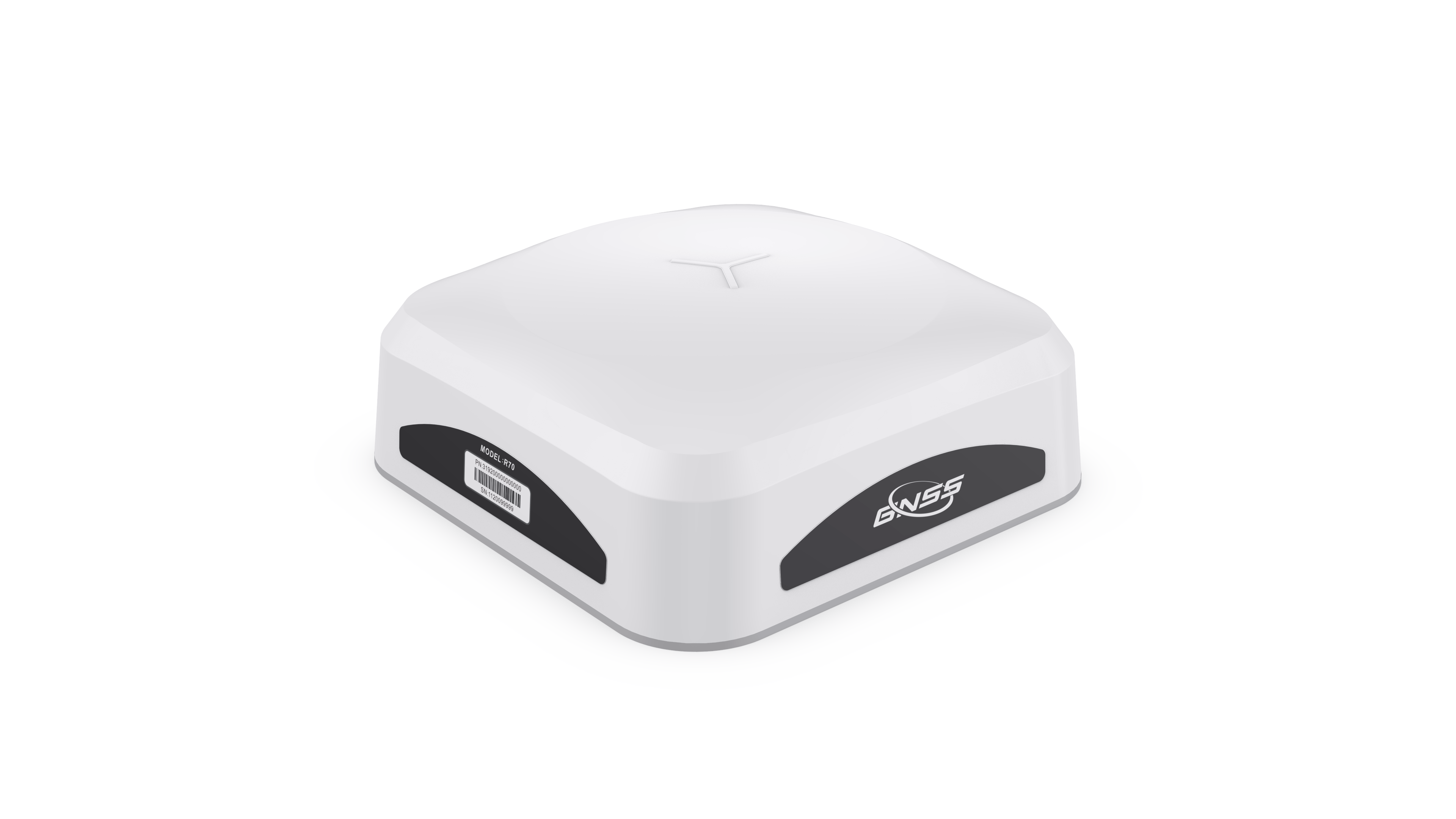

GNSS Receiver |
Tablet Display |

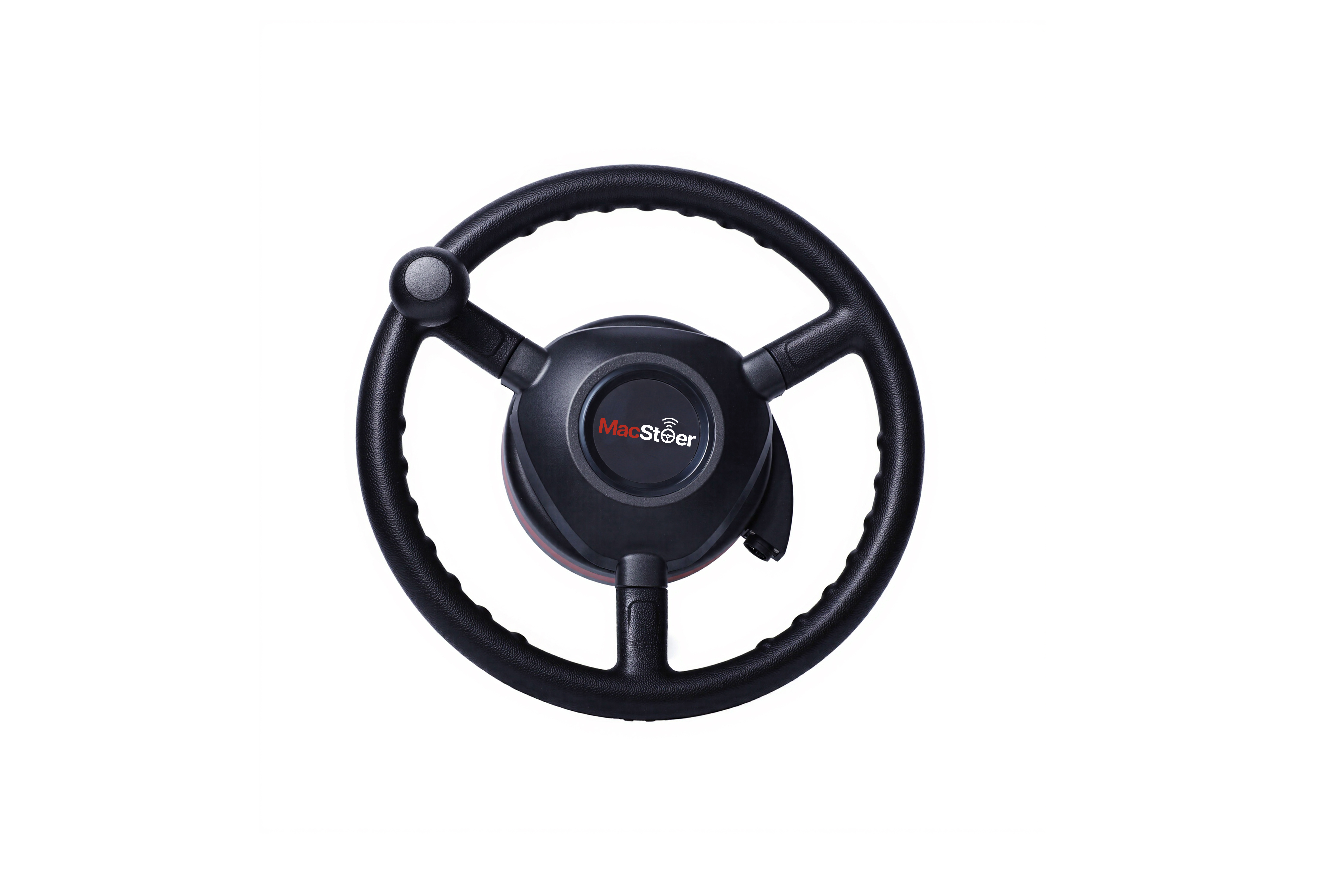

Steering and Control Section |
|
RTK Positioning Accuracy (RMS) |
LED Display |
Data Interface |
|
Horizontal: 0.32 inches +1 ppm Vertical: 0.59 inches +1 ppm Initialization Time: <5 s (typical) Initialization Reliability: >99.9% First Fix Time: <30 s |
10.1 inches 1280 x 800 p 750 nits |
CANBUS RS232 AD conversion |
|
Constellation |
I/O Interface |
Electrical Parameters |
|
GPS, GLONASS, BDS, Galileo, QZSS, SBAS, L-band |
Power Supply: 12V-24V DC USB 2.0 * 1 12 V DC output * 2 |
Motor Voltage Supply Range: 9–36 V DC Communication Protocol: MODBUS |
|
Frequency Bands |
System |
Physical Performance |
|
GPS: L1C/A/L2P(Y)/L2C/L5 Galileo: E1/E5a/E5b/E6* BDS: B1I/B2I/B3I/B1C*/B2b* GLONASS: G1/G2 QZSS: L1C/A/L2C/L5 SBAS: L1C/A |
8-core, 2 GHz 2 G RAM 32 G ROM Android 12.0 |
Peak Torque: 9 N•m Dimensions: Diameter: 7.15 inches Height: 2.38 inches Weight: 6.17 Ibs Exterior Material: Aluminum alloy |
|
Environment |
Environment |
Environment |
|
Ingress protection rating: IP67 |
Ingress protection rating: IP67 |
Ingress protection rating: IP66 |
COMPARISION BETWEEN N50 & N30
| N50 | N30 | |
| Terrain compensation | Yes | No |
| Automated steering | Yes | No |
| Navigation accuracy (RTK) | 1 inch | 1 inch |
| Driving accuracy | 1 inch | 4-12 inches |
| Build-in IMU | Yes | No |
| Front wheel IMU | Yes | No |
| Auto steering drive unit | Yes | No |
| 4G network chipsets | Yes | No |
| Display size | 10'' | 10'' |
| Key performance | • 4 inches accuracy free (full convergence,95% confidence level). • Native RTK (1-inch), no unlock fee. |
•4 inches accuracy free (full convergence,95% confidence level). •Supports native RTK (1-inch), no unlock fee. |
| Service Fee | • No RTK unlock fee • No annual subscription fee for auto-steer • No ISOBUS UT unlock fee • Satellite RTK signal: ~$900/yr (optional) |
•No RTK unlock fee. •Satellite correction ~$900/yr (optional). |
| RTK Signal | If using your own RTK base →NO yearly fee for RTK signal | If using your own RTK base → NO yearly fee for RTK signal |
| Use on Farm | Wheat farm, Cotton farm, Corn farm, Soybeans farm etc. | Hay farm, Dairy farm, Sod farm etc. |
