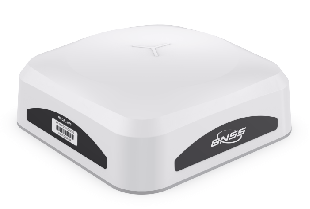

Product Overview

This receiver is the RTK role module of the N50 auto-steering kit: the part that listens to the satellites, applies correction data and hands a steady position to the steering controller, so the machine follows the same line pass after pass. It is supplied as an N50 service part, built to the same specification as the receiver that ships inside our tractor GPS systems rather than a lookalike substitute.

Most orders come from one of two situations. A receiver stops delivering a fix in the middle of a spraying or tillage window, and the workshop needs the machine back in the field quickly. Or a new N50 installation is being assembled from components and the role module is one of the parts on the list.

Once fitted, the unit works quietly above the cab. It locks on at start-up, holds the line through the headland turns and re-acquires its correction signal when the machine comes back into coverage. The guidance display, the automatic steering engagement and the coverage record all depend on the position this unit provides, which is why a failing receiver usually shows up first as wandering passes rather than as a hard fault.

Replacing it does not mean rebuilding the kit. The existing cabling, the steering controller and the mounting hardware stay exactly where they are.

Satellite Constellations

  • GPS — the backbone of North American field work, and the constellation most correction services are built around.
  • GLONASS — extra satellites at high latitudes, useful when a GPS-only view runs thin late in the day.
  • BDS — a fast-growing constellation that puts satellites low on the horizon, which helps along tree lines and farm buildings.
  • Galileo — clean, modern signals that tighten the position solution in open sky.
  • QZSS — regional augmentation satellites that improve satellite distribution when part of the horizon is blocked.
  • SBAS — high-orbit correction satellites that give a basic accuracy improvement where no RTK correction is running.
  • L-band — correction data delivered by satellite, so a machine working beyond network coverage still has something to correct against.
  • Seven sources, one position — the receiver uses whatever is visible, so a wider pool means fewer dropouts in agricultural GPS work.
  • Signals marked with an asterisk — E6, B1C and the BeiDou B2 signal appear on the receiver's signal list; ask our team if the correction service you plan to use depends on one of them.

RTK role Accuracy (RMS)

What the figures mean. Accuracy is quoted as RMS, root mean square — the standard way role suppliers express the spread of a fix rather than a single worst case. Horizontal accuracy is 0.32 inches + 1 ppm; vertical accuracy is 0.59 inches + 1 ppm.

Horizontal is what the operator sees. This is the figure that governs pass-to-pass overlap on seeding, tillage and spraying. In farm GPS work, drift shows up as strips that do not line up, or as a second pass that shaves a little more off the headland each time round.

Vertical deserves more attention than it usually gets. The 0.59 inch figure governs depth control: consistent seed placement, level drainage work, and implements that carry their own height reference. On levelling or land-forming jobs the vertical number matters more than the horizontal one.

The + 1 ppm term is a distance allowance. It grows with the distance between the receiver and its correction source, adding roughly 1 mm for every kilometre. Work close to a base station and the addition is negligible; work far from one and it is worth planning around. This is why two machines with identical hardware can report different field accuracy — the corrections, not the receiver, are usually the difference.

What the numbers assume. A clear view of the sky, a healthy correction link, and a receiver allowed to initialize before the machine moves off. Under heavy canopy, alongside tall buildings, or with the engine started and the tractor already rolling, expect a wider spread until the fix settles.

For most field operations what matters is repeatability: whether the second pass lands exactly where the first one did.

Frequency Bands

Constellation Frequency bands
GPS L1 C/A, L2P(Y), L2C, L5
Galileo E1, E5a, E5b, E6
BDS B1I, B2I, B3I, B1C, B2(b)
GLONASS G1, G2
QZSS L1 C/A, L2C, L5
SBAS L1 C/A
Signals marked Galileo E6, BeiDou B1C and BeiDou B2(b); optional, and present only on configurations specified with them
Constellation and band A constellation is the satellite system; a band is a radio channel within it. Two receivers can see the same satellites and still differ in which channels they can process.
Dual-frequency working Where a constellation lists more than one band, the receiver can use both. Two frequencies from one satellite are how atmospheric delay is corrected across longer baselines.
GPS L2P(Y) and L2C The precision-code L2 signal and its modern civil counterpart on the same frequency, listed separately so the specification matches how different reference networks describe L2 support.
Galileo E5a and E5b Open signals within the Galileo E5 band, relevant when a correction service or reference network specifies E5 rather than E1.
L5 and E5a The same modern frequency shared by GPS, Galileo and QZSS, so a receiver tracking it can draw on all three constellations on that band.
BeiDou B1I, B2I and B3I Earlier-generation BeiDou signals listed alongside the newer B1C and B2(b), so both older and current service descriptions can be matched.

Initialization & Fix Reliability

Initialization reliability is quoted above 99.9%, and that number is worth understanding because it describes the moment that decides whether a working day starts smoothly. Initialization is when the receiver resolves the ambiguities in the satellite signals and commits to a fixed RTK position; until that happens the system is only converging.

What 99.9% means in practice. Across repeated start-ups, the receiver should reach a fixed solution almost every time it is asked to. The failures that make up the small remainder are usually environmental — a machine parked under a shed roof, a correction link that has not come up yet, or a start-up in the few minutes before the correction service goes live. A receiver is the part of a GPS guidance system for tractors that has to be sure of itself before the machine moves.

Where reliability is really tested. Not in open sky on a clear morning, but at the headland of a field bordered by trees, after the correction link has dropped and recovered, or on the third restart of a long day.

Why we do not publish a single first-fix time. Time to first fix depends on how much sky the receiver can see, how far it sits from its correction source, whether correction data is already streaming, and whether the machine is standing still. A figure quoted for one setup would mislead on another.

A practical habit. Start the system at the yard or at the field entrance and let it settle while you finish your checks. Pulling away during convergence is the most common reason an operator decides the receiver is at fault.

Replacement Procedure

  1. Read the label on the receiver you are removing and note the machine model before anything is unplugged; that pairing is what confirms the replacement.
  2. Shut the system down and isolate the power to the steering components.
  3. Release the connector at the receiver, easing it straight out rather than rocking it, and check the pins for corrosion or moisture while it is in your hand.
  4. Release the receiver from its mount and keep the mounting hardware with the machine — brackets and suction mounts are separate service parts and do not come with the receiver.
  5. Seat the new receiver on the same mount, reconnect the cable and confirm the connector has latched fully; a partly seated plug is the usual cause of a receiver that reports no fix.
  6. Power up and let the receiver initialize before moving off, then check that the controller is showing a position rather than a searching status.
  7. Take a short test pass and watch the GPS guidance system for tractors hold the line, then re-check the connector after the first working hour.

Mounting & Field Care

  • Sky view first — an agricultural GPS receiver with a clean view of the horizon will always outperform the same unit tucked behind a beacon bar or an exhaust stack, so mount it as high and as clear as the machine allows.
  • Keep the dome clean — a film of dust or sprayed residue costs signal. Wipe with a damp cloth and plain water; solvents and pressure washers will damage the housing.
  • Route the cable with slack — leave a small service loop at the connector so cab movement and implement articulation pull on the loop rather than on the plug.
  • Check the connector at every service — look for green corrosion, stretched pins and a plug that no longer latches; a marginal connection shows up as an intermittent fix long before it fails completely.
  • Inspect after harvest — dust, chaff and chemical residue build up over a season, and a receiver that worked perfectly in spring can start dropping satellites by autumn.
  • Store it dry — if the machine is laid up for the winter, remove the receiver or confirm it is under cover, and keep it off damp workshop floors.
  • Record the label — note the model and the machine it belongs to in your service log; it turns the next replacement order into a single message.

Technical Data & Downloads

Receiver data sheet Request the current version from our team
Signal and frequency reference Constellation-by-constellation band list
Installation notes Replacement steps for the mount and cable assembly
N50 parts list Full service-part breakdown for the kit
Connector reference Confirm the receiver plug against your cabling
Fault-finding guide Checks to run when the system reports no fix

Ordering & Delivery

  • Lead time — receivers are held in stock, and the standard lead time is 1 week from order confirmation.
  • Where to order — place the order through your account so the part number and order history stay attached to your business; new customers can create an account first.
  • Quantity — order the number of units your repair or workshop stock needs, and tell us how many machines you support if you would like the cartons labelled by machine or site.
  • Packing — receivers are packed for transport as individual units; say so at the time of ordering if your workshop needs cartons marked for a particular site.
  • Shipping — we confirm the delivery address and shipping method with you when the order is placed, since farm and workshop addresses often differ.
  • Payment terms — confirm the current terms with your sales contact before the order is released.
  • Spares on the shelf — operations running more than one set of tractor GPS systems usually keep a receiver in the workshop; it is the quickest way to protect a short spraying or harvest window.
  • Product updates — subscribe to our newsletter and new service-part listings reach you as they are published.

N30 & N50 Part Families

This receiver is an N50 part. The GNSS antenna, which looks like a close relative in a parts photograph, is an N30 part. The two are not interchangeable: they belong to different kits, they do different jobs, and they are ordered against different model families.

Antenna or receiver. The antenna is the element that gathers satellite signals. The receiver is the unit that turns those signals, together with correction data, into a fixed RTK position for the steering controller. An N30 machine is serviced against the antenna; an N50 machine is serviced against the receiver.

What sits in each family. The N30 family includes the GNSS antenna and the assisted driving main cable at 1.5 m. The N50 family includes this receiver, the bracket and the manual switch cable. Cables and installation accessories such as the 4 m power extension cable are shared across MAC Steer components rather than tied to a single kit.

Order from the old part, not from memory. Read the label on the component you are removing and quote it together with the machine it is fitted to. That pairing is what ties an agricultural GPS installation to the correct replacement, and it settles the N30-or-N50 question before an order is placed.

If the label has worn away. Machines bought used, or kits installed by a previous owner, often arrive without legible markings. Send a photograph of the installation, the position of the receiver or antenna, and the model shown on the controller; our team matches it against the kit it was built for. A repair that starts on the wrong family costs a return and a lost field day.

What the other family will not do. An N30 antenna on an N50 machine, or an N50 receiver on an N30 machine, will not restore the position the controller expects, however similar the two parts look. Neither should be treated as universal across our tractor GPS systems. If you are ordering for several machines, list each kit separately so every part arrives matched to the right tractor.

Technical Support & Model Matching

Choosing the right replacement part starts with the right question, so our technical team works directly with farm managers, service engineers and procurement staff to confirm the correct item before an order is placed. Send the system model, a photo of the part being replaced, or the fault you are seeing, and we match it against the N30 and N50 auto-steering systems we build. We advise on installation, wiring and calibration, and help trace faults in the field. A factory in autonomous driving systems since 1946, we stay reachable after delivery, including for older units.

FAQ

Q1. Is this the same receiver that comes with the N50 kit?

Yes. It is the role module we fit to the N50 kit, supplied here as a service part. Ordering it gives you the receiver itself — the wiring, steering controller and mounting hardware already on your machine stay in place, so a repair does not turn into a rebuild of the whole installation.

Q2. Can I use this receiver on an N30 system?

No. The two kits use different reception parts: the N30 system's GNSS antenna is listed separately, and this receiver belongs to the N50 kit. A farm GPS repair on an N30 machine should be ordered against the antenna listing. If you are unsure which kit is on the tractor, confirm before ordering — the two parts are not interchangeable.

Q3. Do I need a correction service to get the stated accuracy?

RTK accuracy depends on corrections reaching the receiver. Without a correction source the receiver still produces a position, but it behaves like a basic agricultural GPS signal rather than a centimetre-level one. The figures on this product assume a working RTK setup — a base station or network service — with the correction link live before the machine starts its pass.

Q4. What is included with the receiver — mounting parts and cable too?

The receiver is supplied on its own. Brackets, suction mounts and cabling are separate service parts, which is deliberate: most farm GPS repairs only need the receiver, and buying the whole mounting set again adds cost for no benefit. Check what is already on the machine before ordering, and add the mounting parts if they are worn or missing.

Q5. How do I know this receiver matches my machine before I order?

Start from the system you already run. This receiver belongs to the N50 kit, so an N50 GPS guidance system for tractors is a direct match. Note the model on the receiver label together with the machine it is fitted to, and compare that pairing against the order; if the label has faded or the kit was installed by a previous owner, confirm the kit model before you buy.
